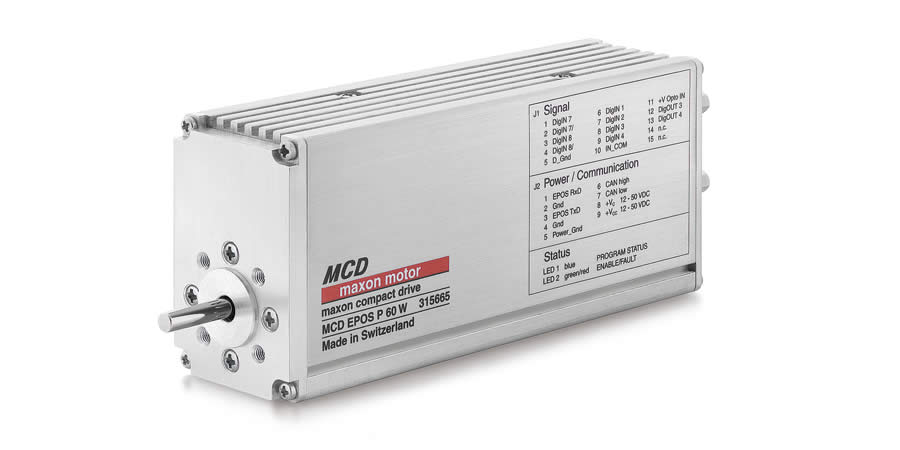

MCD EPOS P, 60W Intelligent compact drive

Part number 315665

MCD EPOS P, 60W Intelligent compact drive

This product can no longer be ordered. Please contact our sales support with the form. Thank you

Specifications

Values at nominal voltage
Nominal torque (max. continuous torque) 54 mNm
Nominal current (max. continuous current) 2.6 A
Stall torque 218 mNm
Stall current 9 A
Max. efficiency 70 %
Characteristics
Operating mode Positionierung
Torque constant 24.3 mNm/A
Speed constant 393 rpm/V
Speed / torque gradient 20.6 rpm/mNm
Rotor inertia 21.9 gcm²
Thermal data
Thermal time constant winding 3.25 s
Thermal time constant motor 777 s
Ambient temperature -20...+85 °C
Max. winding temperature +155 °C
Mechanical data
Bearing type ball bearings
Max. speed 12000 rpm
Axial play 0 - 0.14 mm
Max. axial load (dynamic) 5.5 N
Max. force for press fits (static) 100 N
(static, shaft supported) 2000 N
Max. radial load 25 N, 5 mm from flange
Other specifications
Number of pole pairs 1
Protection IP42
Product
Weight 528 g

Description

maxon’s compact drives feature controllers, sensors and motors in a modern aluminium casing. The use of existing maxon products with an adapted design results in robust, space-saving drive solutions with high power density. The decentralised concept of these intelligent drives minimises the use of centralised controllers.
