NRND (Not Recommended for New Designs): These products continue to be available, but are not recommended for new projects. Our sales team will be happy to suggest alternatives.
Specifications
Technical illustrations

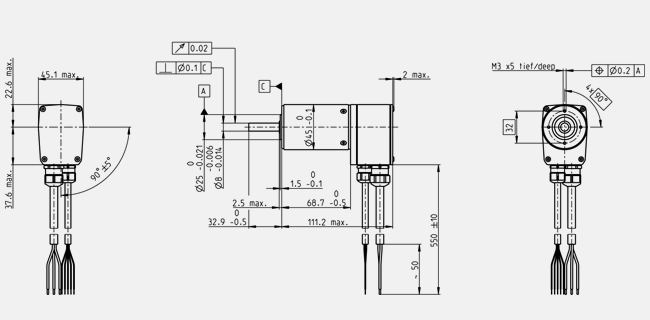

Dimension drawing
Information: Drawings are not to scale.
Values at nominal voltage
Nominal voltage
24 V
No load speed
6090 rpm
No load current
328 mA
Nominal speed
4840 rpm
Nominal torque (max. continuous torque)
183 mNm
Nominal current (max. continuous current)
5.13 A
Stall torque
952 mNm
Stall current
25.6 A
Max. efficiency
79 %
Characteristics
Terminal resistance
0.936 Ω
Terminal inductance
0.275 mH
Torque constant
37.1 mNm/A
Speed constant
257 rpm/V
Speed / torque gradient
6.49 rpm/mNm
Mechanical time constant
8.08 ms
Rotor inertia
119 gcm²
Thermal data
Thermal resistance housing-ambient
1.9 K/W
Thermal resistance winding-housing
0.9 K/W
Thermal time constant winding
15.1 s
Thermal time constant motor
1600 s
Ambient temperature
-20...+100 °C
Max. winding temperature
+125 °C
Mechanical data
Bearing type
ball bearings
Max. speed
15000 rpm
Axial play
0 mm, at radial load < 20 N
0.14 mm, at radial load > 20 N
Max. axial load (dynamic)
16 N
Max. force for press fits (static)
182 N
(static, shaft supported)
5000 N
Max. radial load
140 N, 5 mm from flange
Other specifications
Number of pole pairs
1
Number of phases
3
Number of autoclave cycles
0
Protection
IP54
Product
Weight
850 g
Operating Range
Continuous operation range
Short term operation range
Description

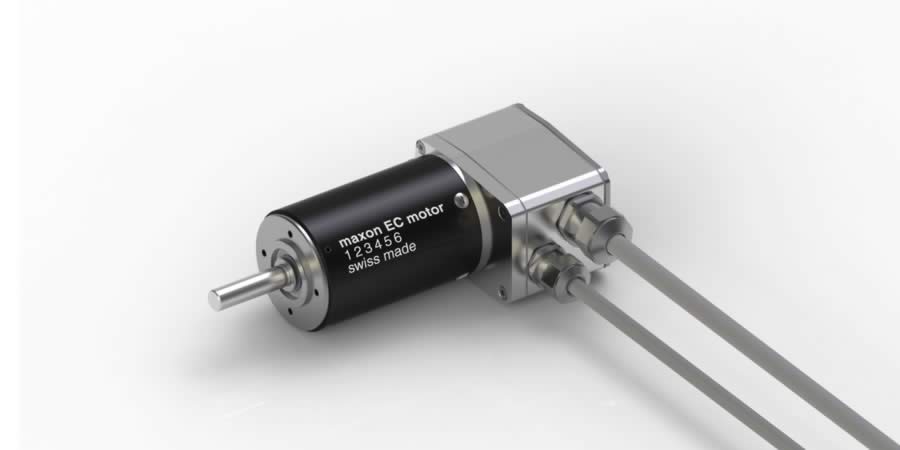

The electronically commutated EC motors are characterized especially by their favorabletorque characteristics, high power, extremely broad speed range and, of course, by theirunsurpassed service life.
