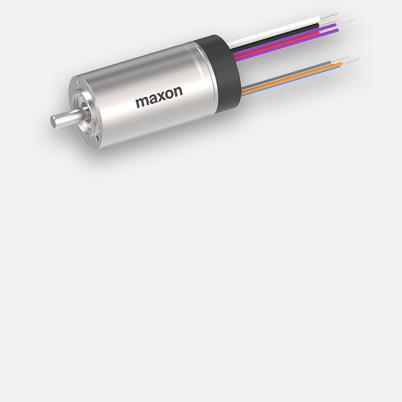

ECX SPEED 22M Ø22 mm, brushless, with Hall sensors | High power
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | CHF 296.60* |
| 5-19 | CHF 231.60* | |
| 20-49 | CHF 188.70* | |
| from 50 | On request |
Specifications
Technical illustrations
- Dimension drawing
| Values at nominal voltage | |
| Nominal voltage | 48 V |
| No load speed | 53200 rpm |
| No load current | 96.8 mA |
| Nominal speed | 50400 rpm |
| Nominal torque (max. continuous torque) | 18 mNm |
| Nominal current (max. continuous current) | 2.17 A |
| Stall torque | 420 mNm |
| Stall current | 48.8 A |
| Max. efficiency | 91 % |
| Characteristics | |
| Terminal resistance | 0.983 Ω |
| Terminal inductance | 0.0801 mH |
| Torque constant | 8.6 mNm/A |
| Speed constant | 1110 rpm/V |
| Speed / torque gradient | 127 rpm/mNm |
| Mechanical time constant | 2.86 ms |
| Rotor inertia | 2.15 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 11.3 K/W |
| Thermal resistance winding-housing | 0.6 K/W |
| Thermal time constant winding | 1.14 s |
| Thermal time constant motor | 314 s |
| Ambient temperature | -20...+100 °C |
| Max. winding temperature | +155 °C |
| Mechanical data | |
| Bearing type | Kugellager |
| Max. speed | 60000 rpm |
| Axial play | 0 mm, at radial load < 4 N |
| 0.24 mm, at radial load > 4 N | |
| Radial play | 0.03 mm |
| Max. axial load (dynamic) | 4 N |
| Max. force for press fits (static) | 110 N |
| (static, shaft supported) | 6000 N |
| Max. radial load | 16 N, 5 mm from flange |
| Other specifications | |
| Number of pole pairs | 1 |
| Number of phases | 3 |
| Number of autoclave cycles | 0 |
| Product | |
| Weight | 98 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
Description
The brushless ECX Speed motors with an ironless winding have an extremely large speed range, high power, excellent control characteristics and of course unrivaled durability.The ECX SPEED 22 M is available with Hall sensors, encoder, or sensorless. It can be combined with gearheads, and the electrical connection is configurable. Order your ECX drive online now.
