Beyond combinations. Configure your drive individually.
ECX SPEED 13L Ø13 mm, ceramic bearings, brushless, sensorless | Sterilizable
| Price scales | Quantity | Price per unit |
|---|---|---|
| Prices excluding VAT and shipping costs | 1-4 | CHF 481.90* |
| 5-19 | CHF 376.30* | |
| 20-49 | CHF 306.60* | |
| from 50 | On request |
Specifications
Technical illustrations

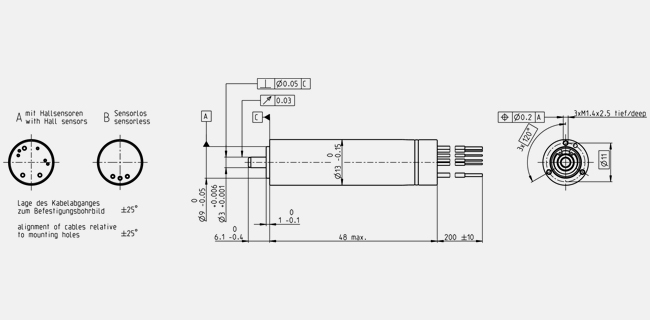

- Dimension drawing
| Values at nominal voltage | |
| Nominal voltage | 48 V |
| No load speed | 65100 rpm |
| No load current | 72 mA |
| Nominal speed | 61200 rpm |
| Nominal torque (max. continuous torque) | 7.56 mNm |
| Nominal current (max. continuous current) | 1.14 A |
| Stall torque | 143 mNm |
| Stall current | 20.4 A |
| Max. efficiency | 89 % |
| Characteristics | |
| Terminal resistance | 2.36 Ω |
| Terminal inductance | 0.108 mH |
| Torque constant | 7.01 mNm/A |
| Speed constant | 1360 rpm/V |
| Speed / torque gradient | 458 rpm/mNm |
| Mechanical time constant | 1.51 ms |
| Rotor inertia | 0.315 gcm² |
| Thermal data | |
| Thermal resistance housing-ambient | 19.5 K/W |
| Thermal resistance winding-housing | 2.04 K/W |
| Thermal time constant winding | 2.41 s |
| Thermal time constant motor | 397 s |
| Ambient temperature | -40...+135 °C |
| Max. winding temperature | +155 °C |
| Mechanical data | |
| Bearing type | Kugellager |
| Max. speed | 120000 rpm |
| Axial play | 0 mm, at radial load < 1.5 N |
| 0.28 mm, at radial load > 1.5 N | |
| Radial play | 0 mm |
| Max. axial load (dynamic) | 1.5 N |
| Max. force for press fits (static) | 50 N |
| (static, shaft supported) | 1500 N |
| Max. radial load | 6 N, 5 mm from flange |
| Other specifications | |
| Number of pole pairs | 1 |
| Number of phases | 3 |
| Number of autoclave cycles | 2000 |
| Product | |
| Weight | 41 g |
-
Operating Range
| Continuous operation range | ||
| Short term operation range | ||
Description
The brushless ECX Speed motors with an ironless winding have an extremely large speed range, high power, excellent control characteristics, and of course unrivaled durability.
The ECX SPEED 13 L is available with Hall sensors, encoder, or sensorless. It can be combined with gearheads, and the electrical connection is configurable. Order your ECX drive online now.
