EPOS4 CB 50/5 CAN

Part number 534133

EPOS4 CB 50/5 CAN
Price scales Quantity Price per unit
Prices excluding VAT and shipping costs 1-4 CHF 152.00
5-19 CHF 133.80
20-49 CHF 115.00
from 50 On request

Specifications

Product
Weight 37 g

Description

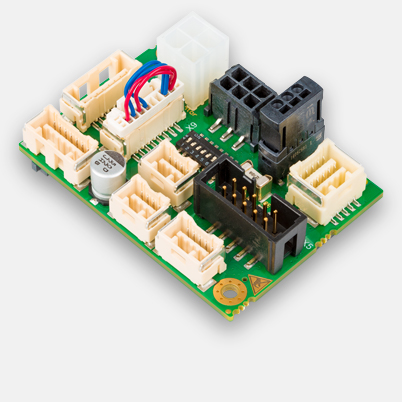

EPOS4 Connector Board 50/5 with CAN interface
Can be combined with EPOS4 Module 50/5 to form a compact solution, including STO Idle Connector

Fuse: 10 A very fast
Inductance: 3 x 9.4 µH
RS232 transceiver
DIP switch: 8-pole for CAN ID, CAN automatic bit rate detection, CAN bus termination, I/O level change
Dimensions: 55.0 x 40.0 x 18.8 mm

Anschlüsse:

  • Molex CLIK-Mate for Sensor, I/O, STO, RS232, CAN
  • Harting har-flexicon for Power Supply, Logic Supply
  • Molex Mini-Fit for Motor
  • Molex Micro-Fit for Hall Sensor
  • Pin header 2x5-pole 2.54 mm pitch (DIN 41651) for Encoders

For use with 534130
